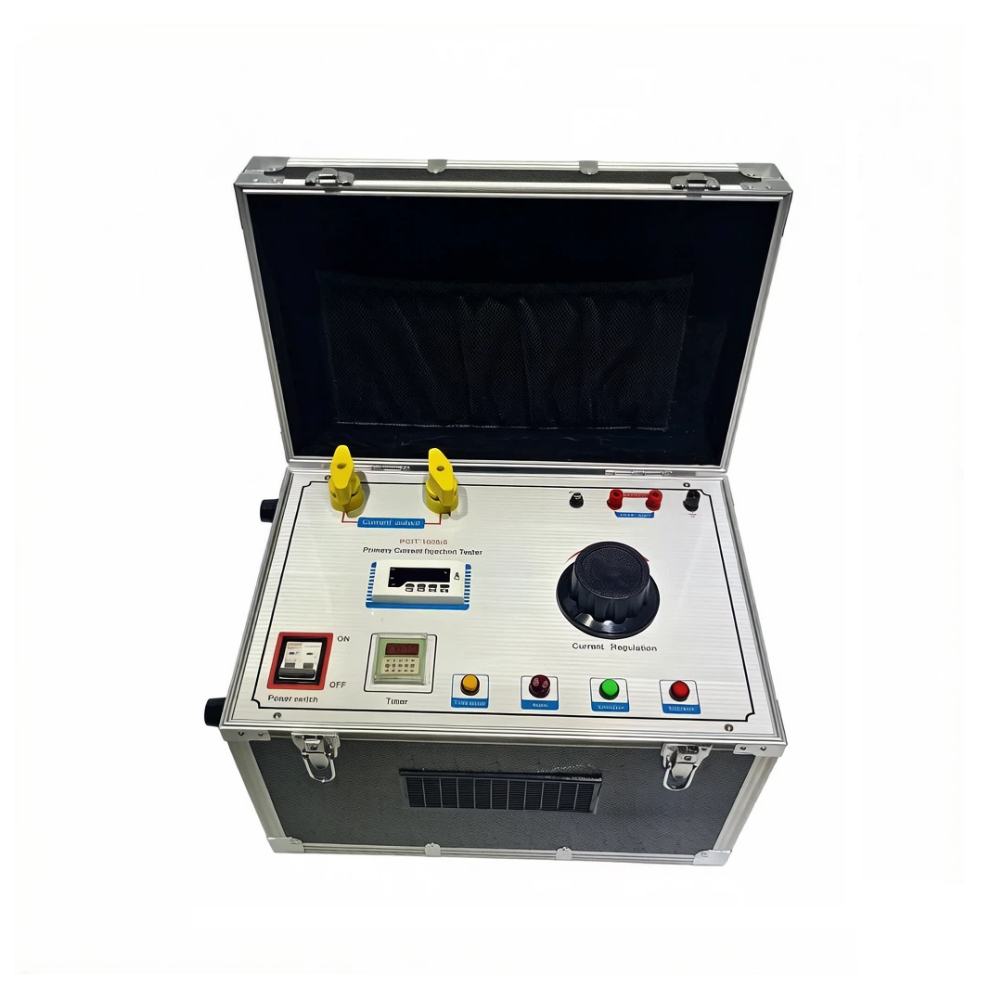

Primary Current Injection Tester PCIT-1000/5 can generate 1000A high current to simulate the rated current or fault current in the primary circuit of power equipment in power plants or substations.
Descriptions
Primary Current Injection Tester PCIT-1000/5 is applied in power system for circuit breaker test, protection system test and current transformer test. The tester can generate 1000A high current to simulate the rated current or fault current in the primary circuit of power equipment.
Technical Data
● Current output: 0-1000A
● Voltage output: 0-5V
● Output capacity: 5kVA
● Output time
● Output current waveform distortion: <5%
● Dimensions: 450×350×200mm
● Weight: 43kg
● Power supply: AC220V/230V, 50Hz/60Hz
